Neden 220V kendinden sürücülü asansör spotu tercih edilmelidir?

On-board driver teknolojisi sayesinde harici driver ihtiyacı ortadan kalkar, montaj kolaylaşır ve sistem daha kompakt hale gelerek arıza riskini minimize eder.

Asansör spotlarında güvenlik nasıl sağlanıyor?

Ürünlerimiz yangın yürütmeyen ABS kasa yapısına sahiptir. Şaseye elektrik kaçağı riskini önleyen tam izolasyonlu ve dış müdahaleye kapalı bir yapı sunar.

LED spotların ömrü ne kadardır?

LED'lerin yüksek kalite PCB üzerine doğrudan dizildiği özel tasarım ve dengeli ısı dağılımı sayesinde maksimum verimlilik ve uzun çalışma ömrü sağlanır.

Asansör kabin aydınlatmasında EN 81-20 lüks standardı nedir?

EN 81-20 standardına göre kabin tabanında ve kumanda butonları üzerinde asgari 100 lüks (lux) aydınlatma şiddeti sağlanmalıdır. Acil durum aydınlatmasında ise 1 saat boyunca en az 5 lüks seviyesi kesintisiz korunmalıdır. LiftKeys LED spotları yüksek lümen/watt verimliliğiyle bu şartları eksiksiz karşılar.

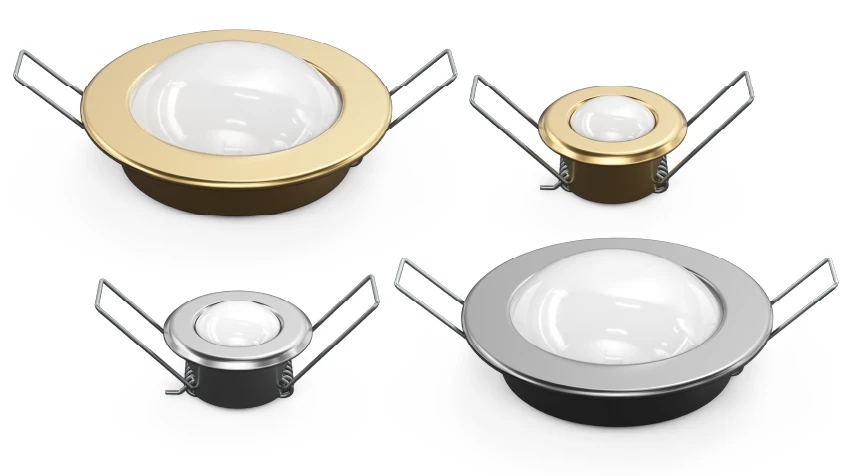

Elevator LED Spotlight & Ceiling Lighting with 220V Driver

Thanks to the special design where the LEDs are arranged directly on the high quality PCB, our products offer maximum efficiency and long life.

Thanks to the integrated on-board driver system, there is no need to use an external driver.

Heat dissipation becomes more balanced

LED life is maximized

Eliminates the need for external drivers

System powered by on-board driver technology, more compact,

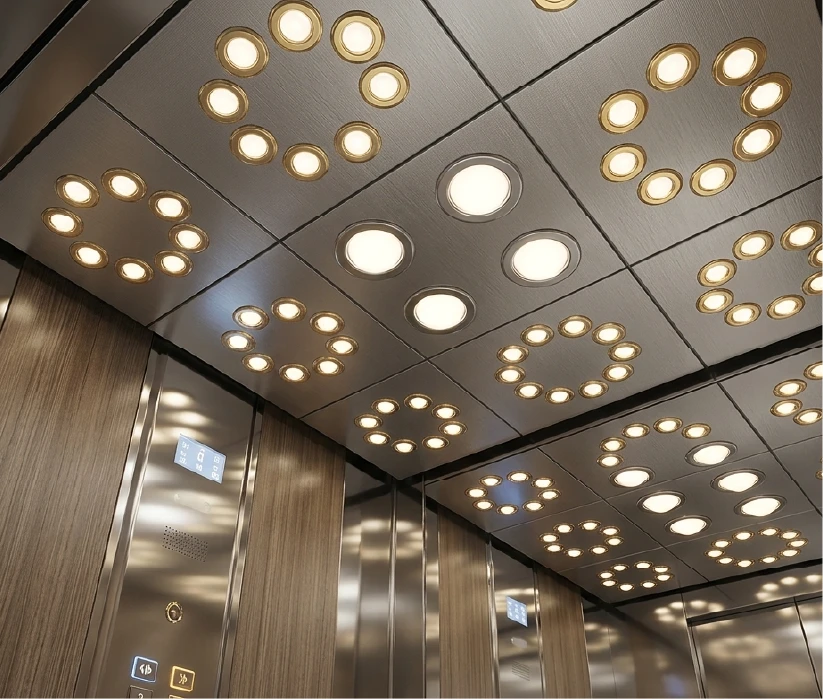

LiftKeys LED PCB On-board Driver Technology and Elevator Ceiling Lighting

Professional Lighting and Mounting System Designed for Elevators

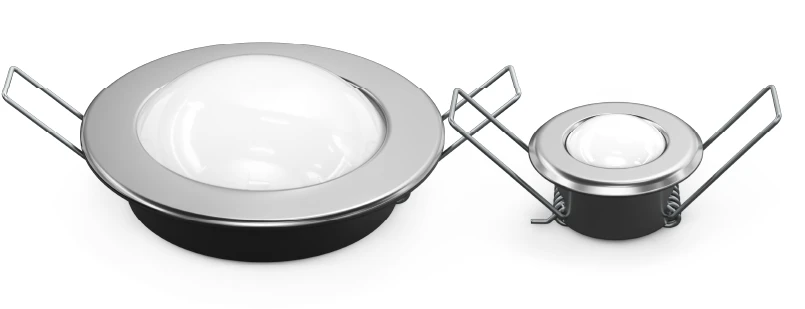

Professional Lighting Designed for Elevators

Our products are manufactured with a special EBS casing structure that does not fire and does not catch fire. In this way, it offers a safe and durable use.

The specially designed homogeneous light dispersion diffuser prevents the appearance of LED spots and provides soft, balanced and unobtrusive lighting inside the cabinet.

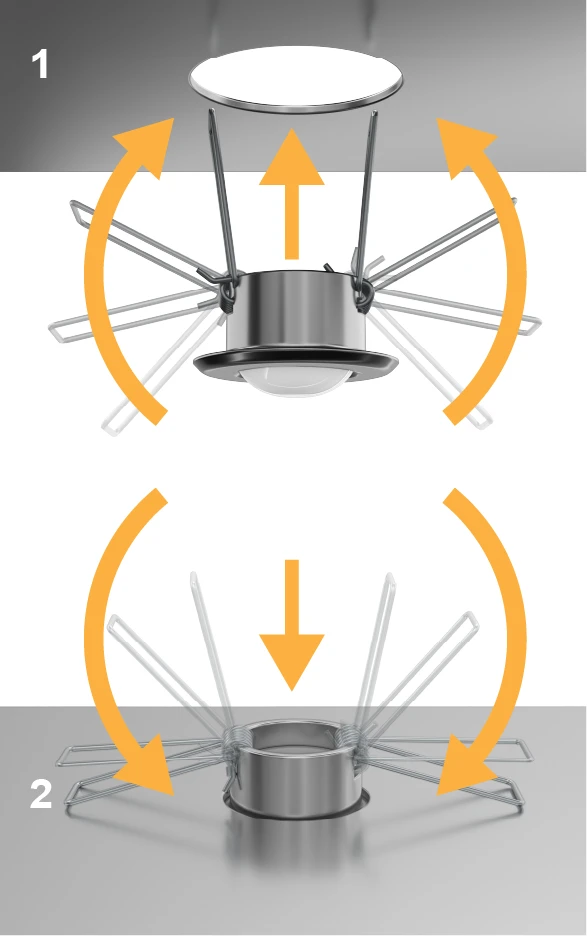

Thanks to the practical mounting spring system located in the rear part, the products are easily mounted and quickly fixed to the cabin ceiling.

Thanks to these features, our products;

It offers a long-lasting design suitable for elevator use, creating a professional lighting solution for elevator cabins.

Safety Priority

Our products are designed with the principle of maximum safety, as they work with 220V. The whole body structure is made of fireproof ABS casing material.

The on-board driver system, which is included in the product, is completely enclosed in the chassis and must be protected against interference from the outside. In this way, electrical safety is maintained at the highest level.

Thanks to the ABS case structure, the product is insulated so as not to create electrical leaks to the chassis. This ensures safe and trouble-free use in elevator cabins.

Thanks to this design:

Electrical safety is at maximum

The risk of leakage of electricity to the chassis is eliminated

Electronic structure with protection against external interference

Fireproof and flame-proof case

As a result, our products offer a safe, durable and long-lasting lighting solution for elevator applications.

EN 81-20 Norms & Lighting Directives

EN 81-20 Standards and Luxury Requirements for Elevator Ceiling Lighting

In order to ensure passenger safety, panic prevention and clear vision comfort in elevator cabins, the EN 81-20 standard (Article 5.4.10) has introduced strict criteria for cabin lighting. A uniform distribution of a minimum illumination intensity of 100 lux (lux) is required at the cabin floor level and on the control panel.

100 Lux Base Light

Uniform light intensity of at least 100 lux over the entire base of the cabin and at a height of 1 meter above ground level. LiftKeys special diffusers prevent ghosting and blind spots.

Flame Retardant ABS V-0 Case

V-0 class flame retardant housing, which prevents the risk of fire in cabin ceiling electrical installations. Fully insulated dielectric safety structure that does not leak to the chassis.

Integrated On-Board Drive

Direct 220V PCB technology that resets the need for external transformer and driver. Completely eliminates cable-top clutter and external transformer failures.

Elevator Ceiling Lighting Systems Technical Comparison Table

Technical Criteria/Feature	LiftKeys 220V On-Board LED Spotlight	Spotlight with 12V/24V External Driver	Conventional Halogen Armature
Supply Voltage	220V AC (Direct Grid)	12V / 24V DC (External Transformer Required)	12V DC / 220V AC
Driver/Driver Architecture	Integrated on PCB (On-Board)	Cabin Top External Box Drive	Ballast/Driverless Direct Line
Case Material & Fire Resistance	Flame Retardant ABS V-0 (Does not fire)	Standard Aluminum/Plastic	Sheet Metal (Risk of Overheating)
Electrical Chassis Insulation	Fully Insulated Body (Zero Leakage)	Transformer/Terminal Grounding Dependent	High Risk of Body Leakage
Light Distribution and Diffuser	Homogeneous Opal Diffuser (LED Dots Invisible, Zero Glare)	Semi-Transparent/ Spot Light	Point-Focused Glare
EN 81-20 Lux Level (>100 Lux)	120 - 150 Lux	80 - 100 Lux	40 - 60 Lux (Insufficient)
Working Life & Durability	50.000+ The moment	20.000 - 30.000 Clock (Driver Change Required)	2.000 - 3.000 Clock (Frequent Flemish Break)
Power Consumption & Heating	3W - 5W (Low Heat, Maximum Saving)	6W - 10W + Driver Lost Power	20W - 50W (High Temperature)
Installation & Maintenance Cost	Spring Practical Snap, Plug-Play	Wiring Harness and Transformer Assembly	Continuous Bulb Replacement

Frequently Asked Questions About Elevator Spotlight and Ceiling Lighting

On-board driver technology eliminates the need for external drivers, simplifies installation and makes the system more compact, minimizing the risk of failure.

Our products have fireproof ABS casing structure. It offers a fully insulated structure that prevents the risk of electrical leakage to the chassis and is closed to external interference.

Maximum efficiency and long working life are ensured thanks to the special design and balanced heat dissipation in which the LEDs are directly arranged on the high quality PCB.

According to EN 81-20, a minimum illumination intensity of 100 lux (lux) must be provided at the base of the cabin and on the control buttons. In the case of emergency lighting, at least 5 lux levels must be maintained uninterrupted for 1 hour. LiftKeys LED spotlights meet these requirements with high lumen/watt efficiency.
